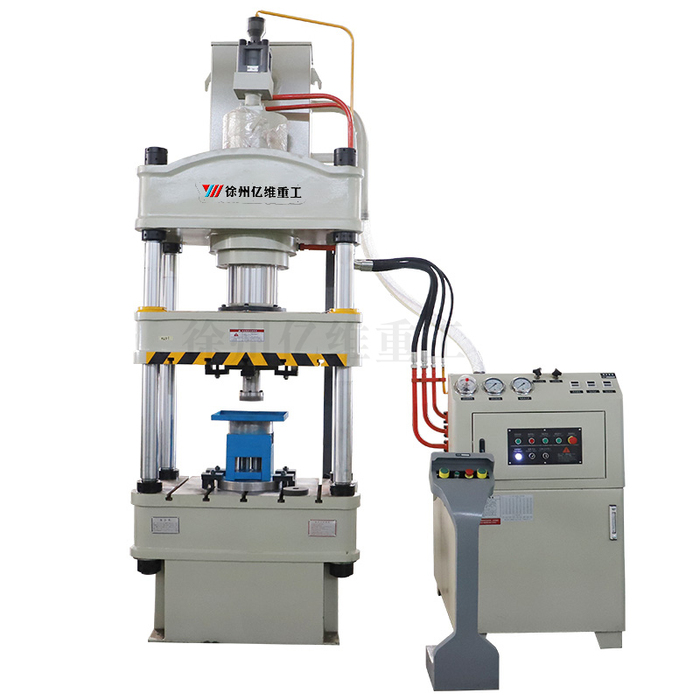

Hydraulic Press for Metal Forming

In the realm of metalworking and manufacturing, precision and efficiency are paramount. The hydraulic press for metal forming stands as a testament to these principles, offering unparalleled performance in shaping and molding various metals into desired forms. This comprehensive product introduction delves into the intricacies of the hydraulic press, highlighting its unique features, technical specifications, and the numerous benefits it brings to industrial processes.

I. Overview of Hydraulic Press for Metal Forming

A hydraulic press is a machine that utilizes hydraulic fluid to generate compressive force for metal forming operations. It is a versatile tool capable of executing a wide range of tasks, including punching, bending, deep drawing, and more. The fundamental principle behind its operation involves the transmission of force through an incompressible fluid, typically oil, which is pressurized by a pump and directed to actuate the press's ram or platen.

II. Key Features and Advantages

1. High Force Generation: Hydraulic presses are renowned for their ability to generate immense compressive forces, making them ideal for heavy-duty metal forming applications. This high force output ensures precise and accurate shaping, even with hard and thick materials.

2. Versatility: With interchangeable tooling and adjustable parameters, hydraulic presses can accommodate a diverse array of metal forming tasks. From simple punching operations to complex deep drawing processes, these machines offer unparalleled flexibility.

3. Energy Efficiency: Compared to mechanical presses, hydraulic presses consume less energy during operation. The hydraulic system's ability to store and release energy efficiently contributes to reduced power consumption and lower operating costs.

4. Precise Control: Advanced hydraulic presses incorporate precision control systems that allow for fine adjustments in force, speed, and position. This level of control ensures consistent and repeatable results, enhancing product quality.

5. Quiet Operation: The use of hydraulic fluid as a medium for force transmission results in a quieter operation compared to mechanical presses. This feature is particularly beneficial in environments where noise reduction is crucial.

6. Durability and Longevity: Constructed with robust materials and designed for heavy use, hydraulic presses are built to withstand the demands of industrial environments. Regular maintenance and proper operation can extend their lifespan significantly.

III. Technical Specifications

To provide a clearer understanding of the hydraulic press's capabilities, the following technical specifications outline its key parameters:

1. Force Capacity: Ranges from 50 tons to over 10,000 tons, depending on the model and application requirements.

2. Bed Size: Available in various sizes to accommodate different workpiece dimensions, with lengths ranging from a few feet to over 20 feet.

3. Ram Travel: Typically between 6 inches to 24 inches, adjustable to suit specific forming depths.

4. Stroke Length: Refers to the total distance the ram can move during a complete cycle, usually ranging from 12 inches to 48 inches.

5. Control System: Modern hydraulic presses incorporate PLC (Programmable Logic Controller) systems for precise control over force, speed, and position. Some models also offer touchscreen interfaces for easy operation.

6. Power Requirements: Vary based on the press's size and capacity, with larger presses requiring higher voltage and amperage.

7. Cycle Time: Depends on the complexity of the operation and the press's specifications, but can range from a few seconds to several minutes per cycle.

IV. Applications and Industries

The versatility and capabilities of the hydraulic press make it a valuable asset in numerous industries and applications:

1. Automotive Industry: Used for manufacturing components such as engine parts, body panels, and suspension systems.

2. Aerospace: Forms critical components like landing gear parts, fuselage sections, and engine brackets.

3. Construction: Produces fasteners, brackets, and structural components for buildings and infrastructure.

4. Electronics: Fabricates precision metal parts for electronic devices, including housings and connectors.

5. Household Appliances: Manufactures components for appliances such as refrigerators, washers, and dryers.

V. Maintenance and Safety Considerations

Proper maintenance and adherence to safety protocols are essential for ensuring the longevity and safe operation of the hydraulic press:

1. Regular Inspections: Conduct routine inspections to identify and address potential issues before they escalate.

2. Fluid Maintenance: Regularly check and replace hydraulic fluid to prevent contamination and maintain system efficiency.

3. Operator Training: Ensure operators are trained in the safe use of the press, including emergency stop procedures.

4. Guarding and Shields: Use appropriate guarding and shields to protect operators from moving parts and potential ejection of workpiece materials.

VI. Conclusion

The hydraulic press for metal forming stands as a testament to engineering ingenuity, offering precision, versatility, and efficiency in a wide range of industrial applications. Its ability to generate high compressive forces, combined with advanced control systems, makes it an invaluable tool for manufacturers seeking to produce high-quality metal components. By understanding its key features, technical specifications, and applications, businesses can make informed decisions when selecting a hydraulic press to enhance their manufacturing processes.
